植物提取浓缩回收干燥系列

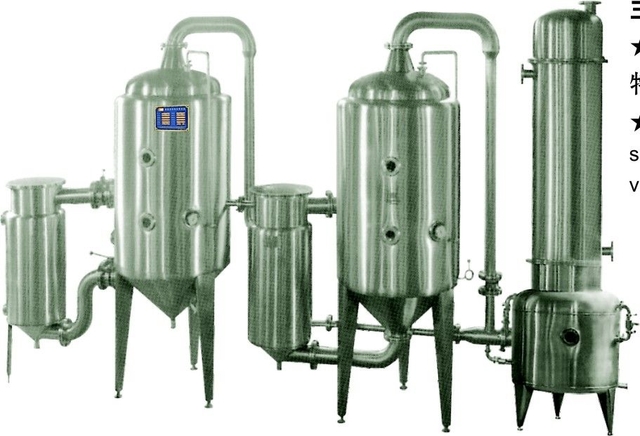

双效外循环蒸发浓缩回收器

Series of dual-effect external cyding vacuum contractor

▄▄

icon2产品详情

主要用途(main usage):

  • 广泛用于医药、食品、化工、轻工等行业的水或有机溶媒液的蒸发浓缩。特别适用于热敏性物料,在真空条件下进行低温连续浓缩。

  • Widely used in medicine, food, chemicals, light industry, such as water or organic solvent evaporation of liquid. Especially suitable for heat-sensitive materials, in a vacuum low-temperature conditions for enrichment.

技术参数(technical data):

指标

项目

WZ2-500

WZ2-1000

WZ2-1500

WZ2-2000

蒸发量(清水)kg/h

500

1000

1500

2000

耗汽量kg/h

390

780

1170

1560

外形尺寸(长X宽X高)m

4X1.5X3.3

5X1.6X3.5

6X1.6X3.7

6.5X1.7X4.3

循环耗水量 T/h

6

12

15

18

蒸发温度

一效   ℃

95~100

真空度(Mpa)

一效

-0.05

二效   ℃

65~75

二效

-0.06~0.08

蒸汽压力(MPa)

0.05~0.09

浓缩比重

1.2~1.3
