Product Display

产品展示

▄▄

固体制剂系列

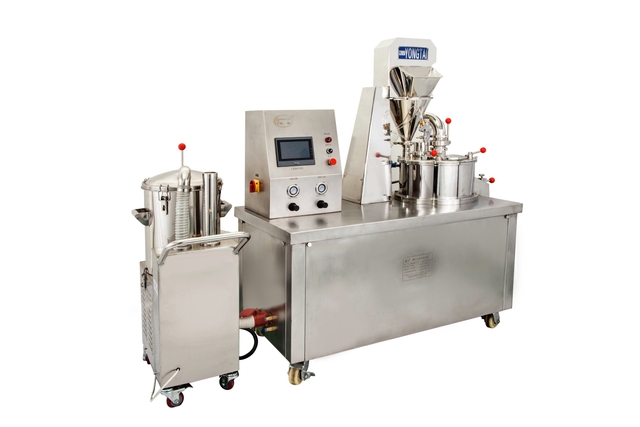

LLB-400A离心流动型包衣造粒机

LLB-400A granulator and coater

▄▄

icon2产品详情

主要用途(main usage):

  • 本机是把主机、供粉、喷浆、鼓风、加热各装置组装为一体的可移动的小型离心流动型造粒包衣设备。

  • 广泛用于医药、食品等工业,亦可适用于化工、冶金、陶瓷等领域。

  • 本机适用于所有粉末的包衣造粒,以及球形颗粒(丸)的制造。经本机加工后的药物,粒径相同,真球度高,剂量准确,流动性好,有良好的崩解度;同时改善了吸湿性,具有良好的可压性。

  • 本机具有起母、造粒、包衣三种功能。

  • 本机采用人机界面程序自动控制造粒过程和参数。

  • 本机可用来开发新剂型的造粒工艺或小量生产高质量贵重丸粒

  • Local is the host for the meal, shotcrete, blast, the heating device can be assembled into a mobile mini-centrifugal flow of grain coating equipment.

  • Is widely used in medicine and food industries, can also be applied to chemical engineering, metallurgy, ceramics and other areas

  • Local applies to all of the powder coating granulation, as well as spherical particles (pills) manufacturing. Local processed by the drug, the same size, the ball really high and accurate dosage, good liquidity, a good degree of disintegration; at the same time improved the moisture absorption, can be a good pressure .

  • Starting with the mother, granulation, coating three functions

  • human-computer interface using automatic control procedures and parameters Granulation Process

  • This machine can be used to develop new formulations of the granulation process or the production of small quantities of high-quality precious pelleting

    技术参数(technical data):

1、整机主要技术数据:





母粒输入量

0.6kg

送料容量

7.5L

球粒输出量

6kg

送料杆转速

0~104rpm

放大倍数

≤2

调速方式

变频调速

造粒直径

Φ0.4~22mm

配套电机型号

YYCJM-90

热风空气温度

室温~80℃

配套电机功率

90W

鼓风量

>400L/min

★喷浆装置

气源压力

0.7Mpa

喷浆蠕动泵转速

0~300rpm

外形尺寸

1600X750X1710mm

流量范围

0.007~1140ml/min

重量

450kg

★鼓风装置

2、主机性能参数:

风量

>0.4m3/min

转子直径

Φ400mm

静压力

1600mmH20

旋转方向

顺时针

风量调节范围

0~0.7m3/min

转速

0~400rpm

配套电机功率

370W

调速方式

变频调速

★空气加热箱

主电机型号

Y801-4

空气加热温度

室温~80℃

功率

0.55KW

电加热功率

3KW

3、其余装置参数:

★喷枪

★供粉装置

喷气量

30L/min

输送方式

螺杆送料

喷气量调节

0~40L/min
